- Place of Origin: china
- Brand Name: Triowin
- Model Number: 60001

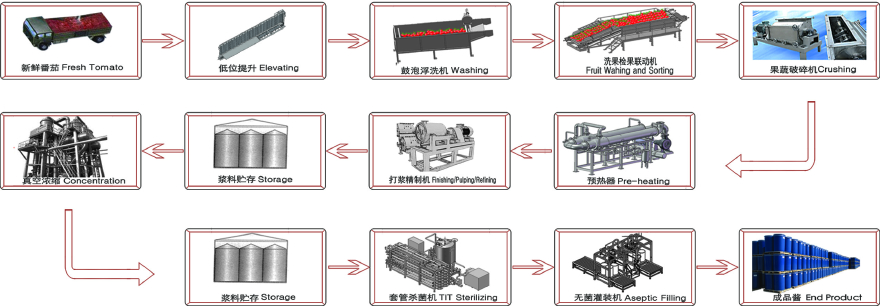

Tomatoes are usually processed for paste and the processing line mainly includes five parts: fresh tomato receiving, pre-washing and sorting section; extracting section; concentrating section; pasteurizing or sterilizing section; aseptic filling section. It ismainly composed of discharge system, hydraulic convey system, bucket elevating, washing and sorting system, crushing system, pre-heating system, pulping and refining system, evaporating& concentrating system, sterilizing system, aseptic filling system. Tomato paste in aseptic drum can be further processed to ketchup, sauces, juices in tin can/bottle/pouch, etc.
* Advanced technology, high yield, high yield.
* High quality material, the reasonable component of the market.
* Field start and related training.
* The finished product quality is excellent, and the color is delicious.
* High productivity, flexible production, can be customized according to customer demand.
* Complete supervision system, equipped with control room to monitor each processing stage.
* Daily output can be clearly revealed.
- Place of Origin: china
- Brand Name: Triowin
- Model Number: 60001
Raw material handling capacity (ton / day) | 60 | 150 | 250 | 500 | 750 | 1000 | 1250 | 1500 | 2000 |
Evaporation form | Double vacuum | Double vacuum | Three vacuum | Three vacuum | Three vacuum | Three vacuum | Three vacuum | Three vacuum | Three vacuum |
Water consumption (ton / h) | 7.1 | 13.1 | 21.6 | 44.3 | 65.7 | 44.3 | 65.9 | 65.9 | 79.08 |
Power (KW) | 83.8 | 151.5 | 412.4 | 636.2 | 955.4 | 1291.6 | 1411.1 | 1558.1 | 1869.7 |
Steam consumption (T / h) | 1.665 | 3.87 | 5.22 | 9.14 | 15.01 | 20.2 | 24.62 | 29.15 | 34,.98 |
Compressed air consumption (T / h) | 66.2 | 66.2 | 66.2 | 72.2 | 72.1 | 72.2 | 72.2 | 72.2 | 86.84 |
Cooling water consumption (T / h) | 125 | 317 | 307 | 585 | 825 | 1075 | 1410 | 1630 | 1956 |
